Character Animation

Animation Assets

Search for the Asset Name in the Asset Drawer to use animation packages. (Using the Asset Id allows direct use in scripts without placing it in the Level Browser.)

Default

Basic

Animation	Animation Id
	ovdrassetid://18162100 Asset Name : BasicAnimations BasicIdleAnimation Duration: 2.13

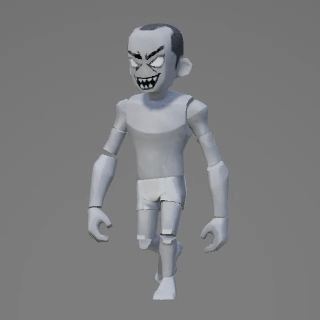

	ovdrassetid://18162300 Asset Name : BasicAnimations BasicWalkAnimation Duration: 1.03
	ovdrassetid://18163100 Asset Name : BasicAnimations BasicRunAnimation Duration: 0.60

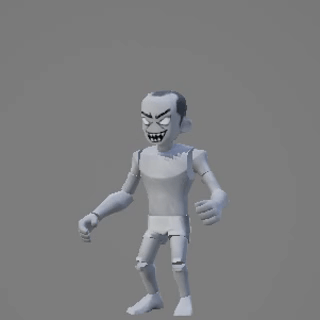

	ovdrassetid://18392100 Asset Name : BasicAnimations BasicJumpAnimation Duration: 0.33
	ovdrassetid://18394100 Asset Name : BasicAnimations BasicJumpLoopAnimation Duration: 0.73

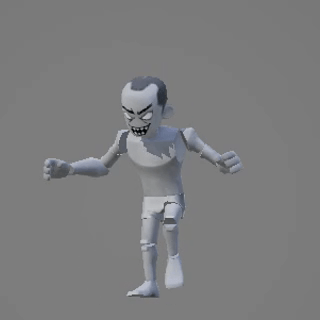

	ovdrassetid://18394200 Asset Name : BasicAnimations BasicLandingAnimation Duration: 0.73

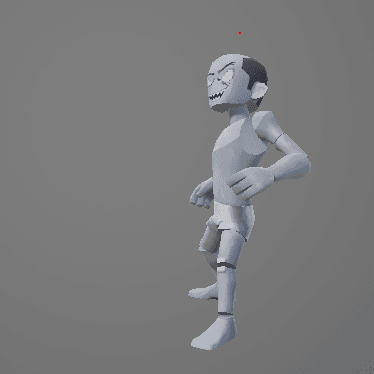

	ovdrassetid://18396100 Asset Name : BasicAnimations BasicAttackAnimation Duration: 0.60
	ovdrassetid://18398100 Asset Name : BasicAnimations BasicKickAnimation Duration: 0.40

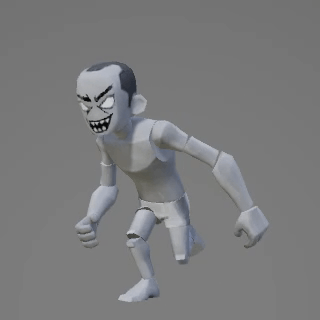

	ovdrassetid://18935100 Asset Name : BasicAnimations BasicDashAnimation Duration: 0.47

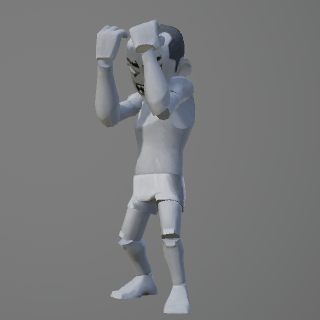

	ovdrassetid://23654100 Asset Name : BasicAnimations BasicDefenceAnimation Duration: 1.06
	ovdrassetid://23656100 Asset Name : BasicAnimations BasicFallDieAnimation Duration: 0.43

State

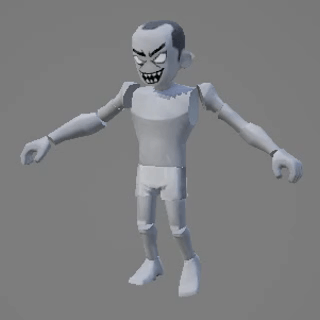

Swim

TPA

Melee

Animation	Animation Id
	ovdrassetid://18449100 Asset Name : BasicMeleeAnimations BasicMeleeIdleAnimation Duration: 1.60

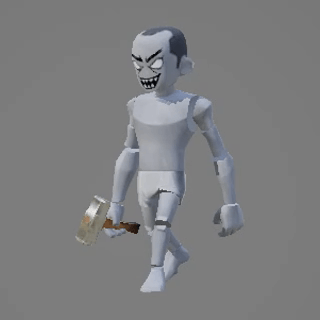

	ovdrassetid://18453100 Asset Name : BasicMeleeAnimations BasicMeleeWalkAnimation Duration: 0.93

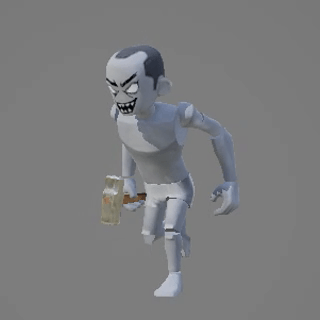

	ovdrassetid://18447400 Asset Name : BasicMeleeAnimations BasicMeleeRunAnimation Duration: 0.66

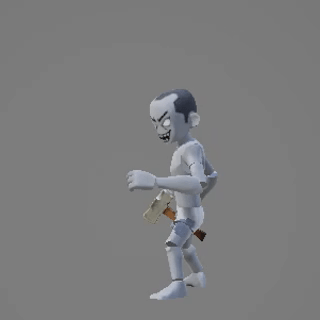

	ovdrassetid://18447200 Asset Name : BasicMeleeAnimations BasicMeleeJumpAnimation Duration: 0.33

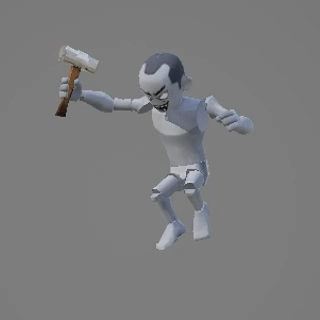

	ovdrassetid://18449300 Asset Name : BasicMeleeAnimations BasicMeleeJumpLoopAnimation Duration: 0.73

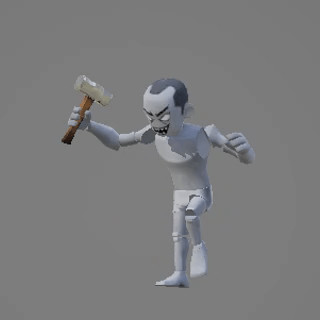

	ovdrassetid://18449200 Asset Name : BasicMeleeAnimations BasicMeleeLandingAnimation Duration: 0.73

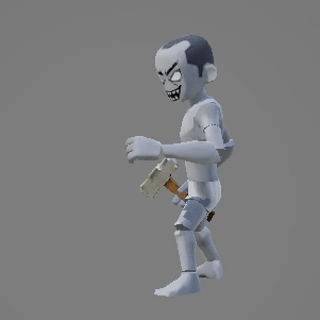

	ovdrassetid://18447100 Asset Name : BasicMeleeAnimations BasicMeleeAttackAnimation Duration: 0.56

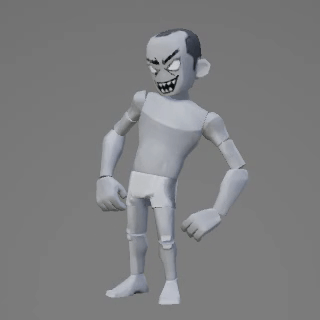

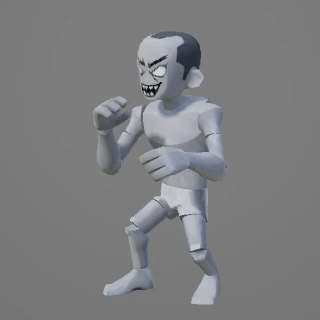

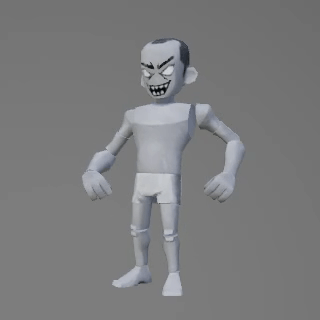

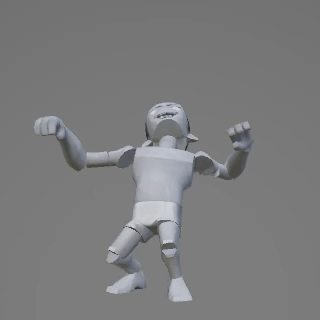

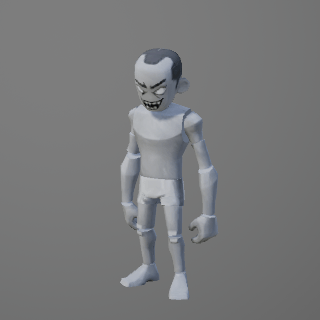

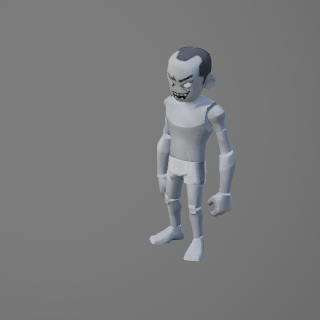

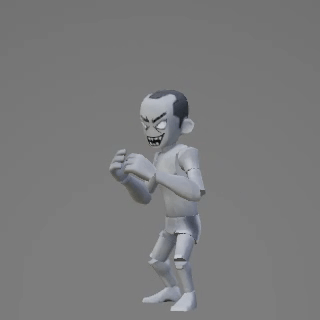

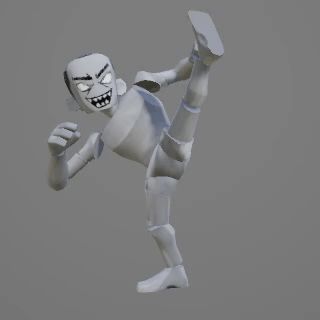

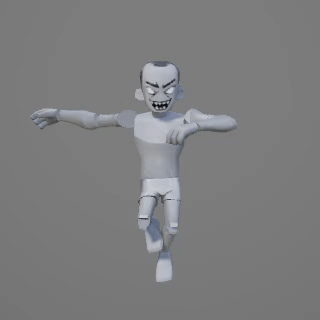

Punch

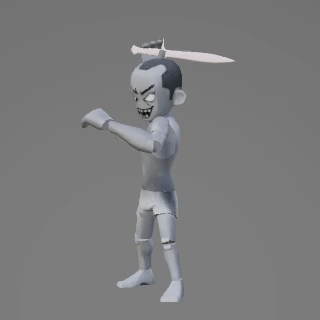

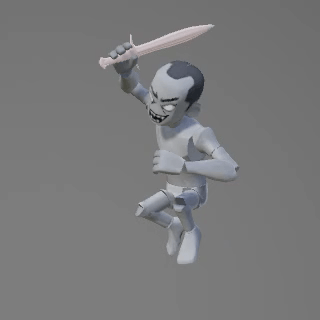

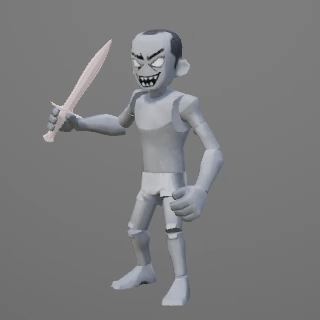

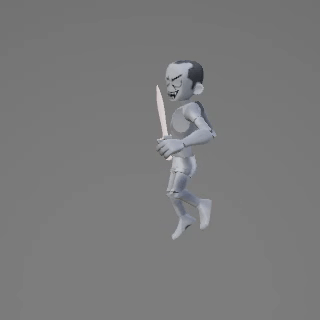

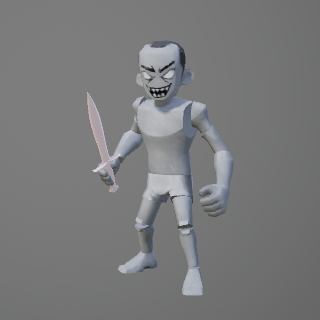

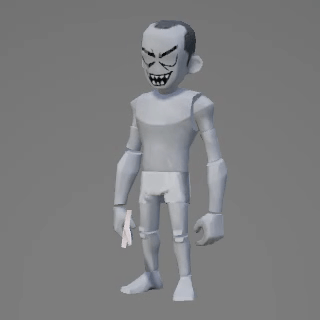

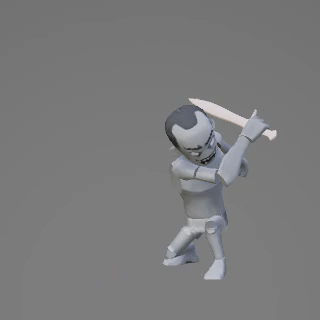

Sword

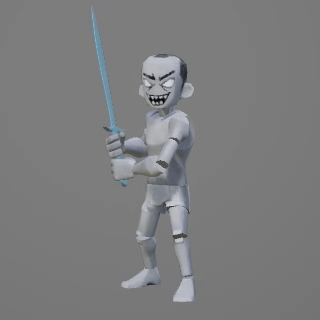

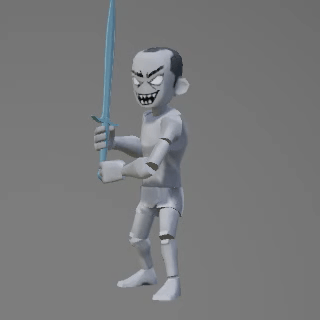

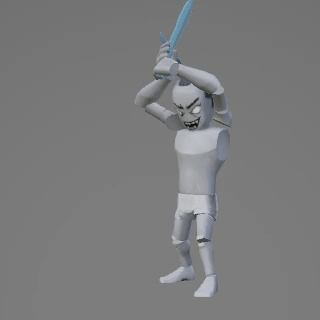

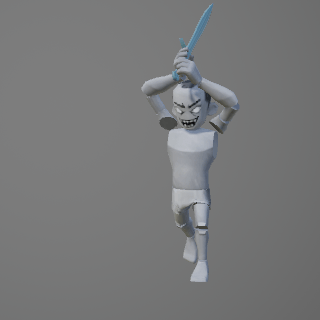

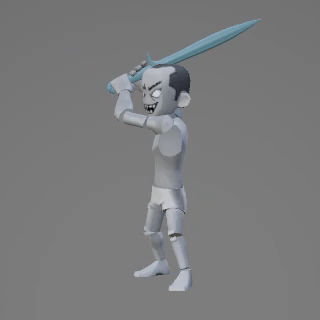

TwoHandedSword

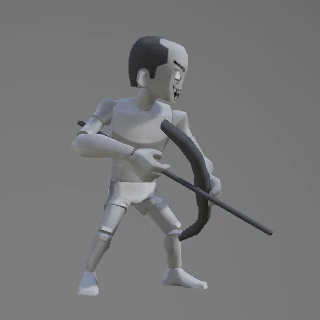

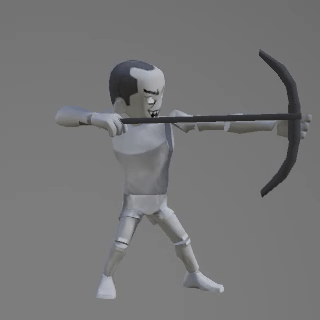

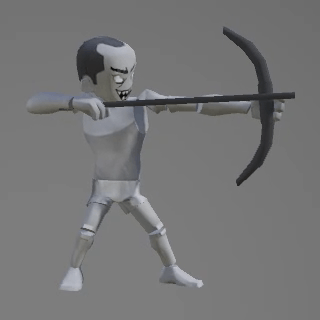

Bow

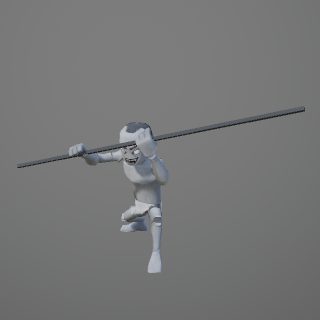

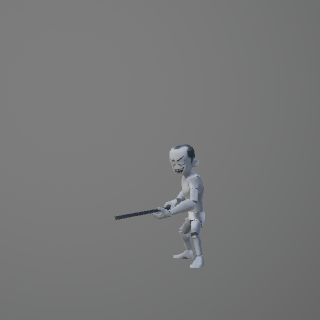

Spear

TPS

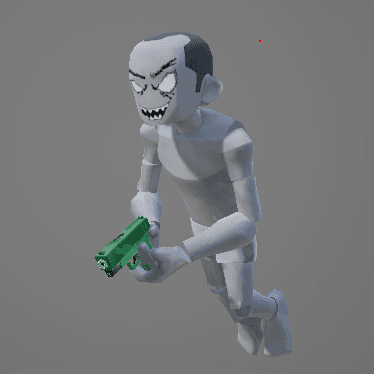

Handgun

Animation	Animation Id

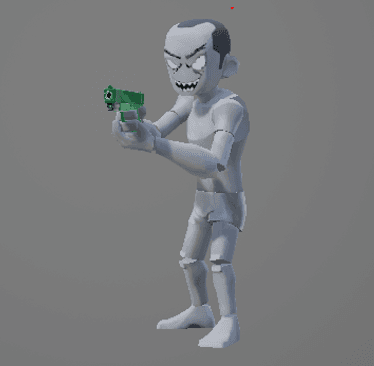

	ovdrassetid://18558100 Asset Name : BasicHandgunAnimations BasicHandgunIdleAnimation Duration: 2.00

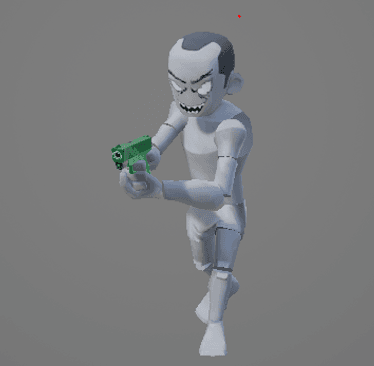

	ovdrassetid://18560100 Asset Name : BasicHandgunAnimations BasicHandgunWalkAnimation Duration: 0.93

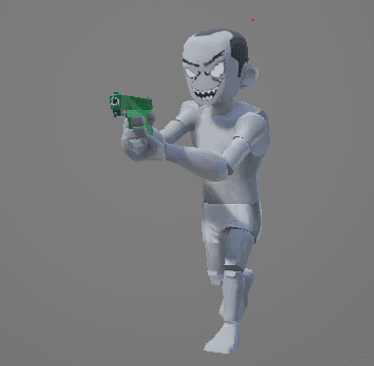

	ovdrassetid://18559300 Asset Name : BasicHandgunAnimations BasicHandgunRunAnimation Duration: 0.66
	ovdrassetid://18563500 Asset Name : BasicHandgunAnimations BasicHandgunJumpAnimation Duration: 0.70

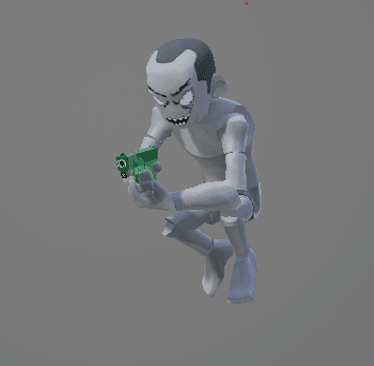

	ovdrassetid://18563700 Asset Name : BasicHandgunAnimations BasicHandgunJumpLoopAnimation Duration: 0.80

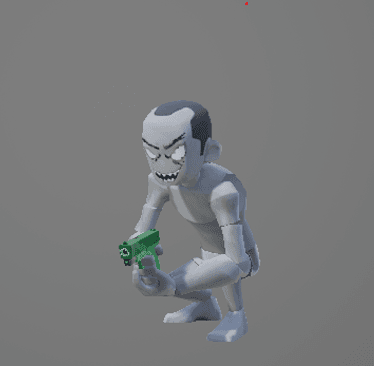

	ovdrassetid://18565100 Asset Name : BasicHandgunAnimations BasicHandgunLandingAnimation Duration: 0.53

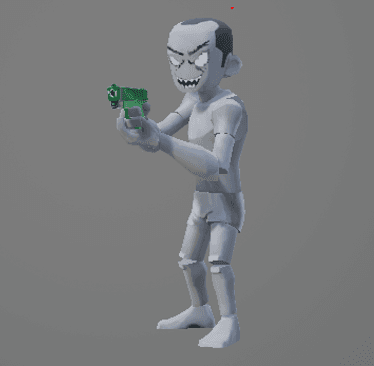

	ovdrassetid://18562100 Asset Name : BasicHandgunAnimations BasicHandgunAttackAnimation Duration: 0.26
	ovdrassetid://18563200 Asset Name : BasicHandgunAnimations BasicHG_ReloadAnimation Duration: 2.33
	ovdrassetid://18566100 Asset Name : BasicHandgunAnimations BasicHG_Boost_F_LoopAnimaton Duration: 0.23
	ovdrassetid://18569300 Asset Name : FirearmsEquipAnimations PistolEquipAnimation Duration: 0.40

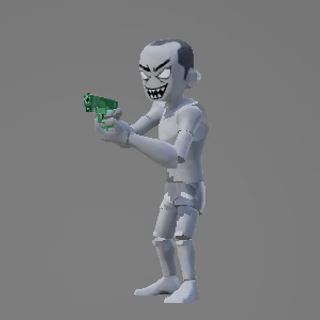

	ovdrassetid://18569100 Asset Name : FirearmsEquipAnimations PistolUnequipAnimation Duration: 0.40

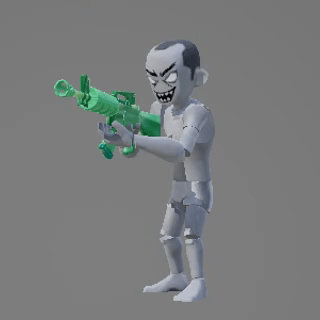

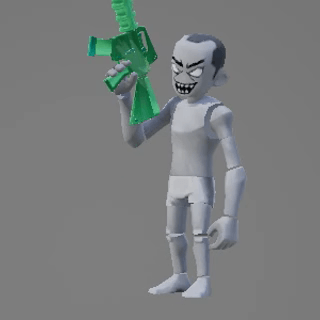

Rifle

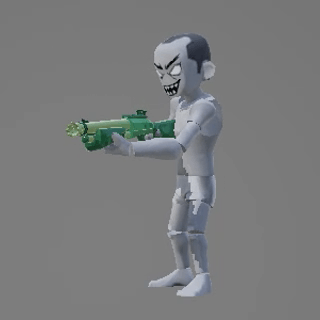

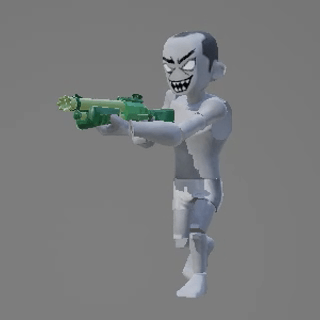

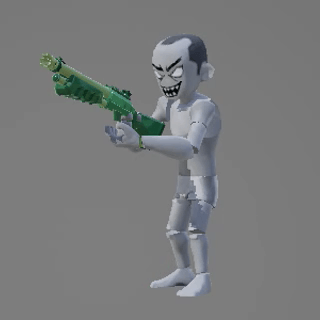

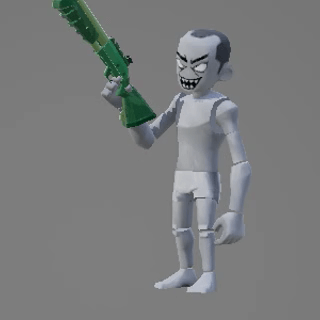

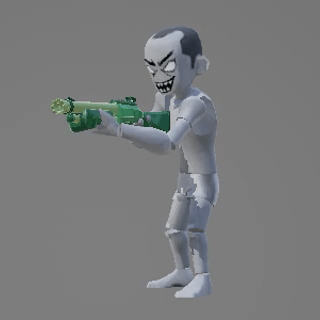

Shotgun

Bazooka

Obby

Animation	Animation Id

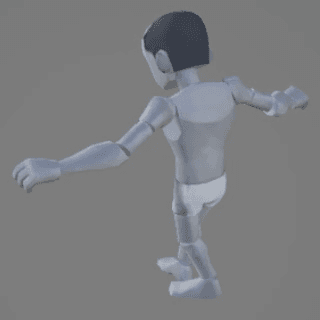

	ovdrassetid://22029100 Asset Name : OBBYAnimations BalanceIdleAnimation Duration: 1.40

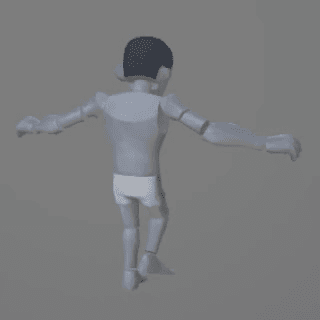

	ovdrassetid://22030200 Asset Name : OBBYAnimations BalanceWalkAnimation Duration: 1.40

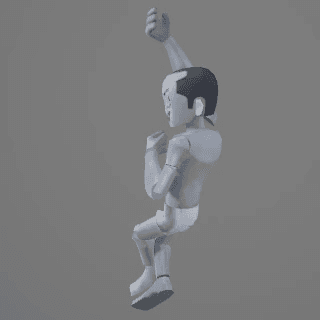

	ovdrassetid://22032100 Asset Name : OBBYAnimations RopeClimbIdleAnimation Duration: 1.60

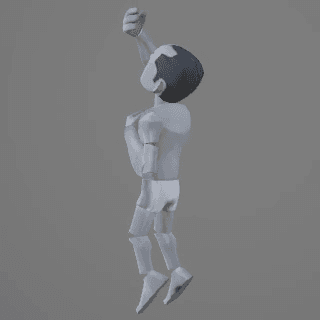

	ovdrassetid://22034100 Asset Name : OBBYAnimations RopeClimbUpAnimation Duration: 1.06

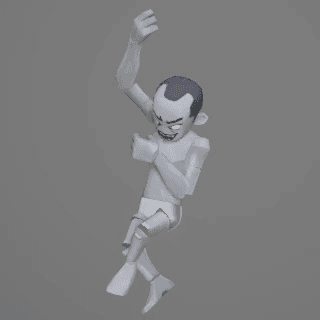

	ovdrassetid://22035100 Asset Name : OBBYAnimations RopeClimbDownAnimation Duration: 1.60
	ovdrassetid://18839100 Asset Name : OBBYAnimations BasicRollingAnimation Duration: 0.66
	ovdrassetid://22037100 Asset Name : OBBYAnimations CrashFallingAnimation Duration: 1.50

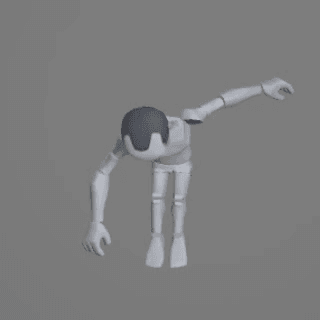

	ovdrassetid://22039100 Asset Name : OBBYAnimations FlounderEdgeStopAnimation Duration: 1.00

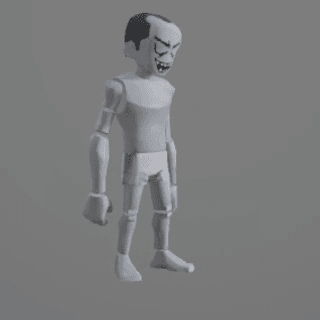

	ovdrassetid://22040100 Asset Name : OBBYAnimations EdgeSlipAnimation Duration: 1.10

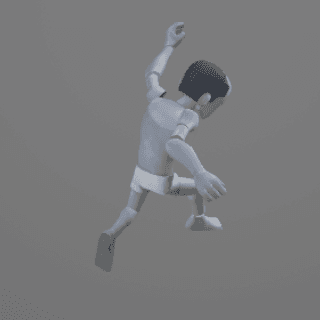

	ovdrassetid://22041100 Asset Name : OBBYAnimations FlounderFallingAnimation Duration: 1.33

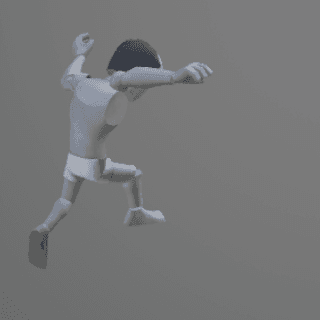

	ovdrassetid://22043100 Asset Name : OBBYAnimations HardLandingAnimation Duration: 2.16
	ovdrassetid://22044100 Asset Name : OBBYAnimations SlopeSlidingAnimation Duration: 0.53
	ovdrassetid://18889100 Asset Name : OBBYAnimations HangIdleAnimation Duration: 0.80
	ovdrassetid://23672100 Asset Name : OBBYAnimations HangMoveAnimation Duration: 1.00
	ovdrassetid://20487100 Asset Name : OBBYAnimations JumpSecondaryAnimation Duration: 0.56
	ovdrassetid://18891100 Asset Name : OBBYAnimations SquatIdleAnimation Duration: 0.80
	ovdrassetid://18891300 Asset Name : OBBYAnimations SquatMoveAnimation Duration: 0.80
	ovdrassetid://18893100 Asset Name : OBBYAnimations CrawlIdleAnimation Duration: 0.80
	ovdrassetid://18894200 Asset Name : OBBYAnimations CrawlMoveAnimation Duration: 0.93

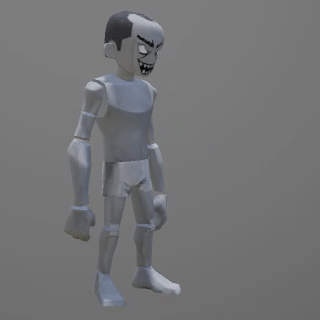

	ovdrassetid://22847100 Asset Name : OBBYAnimations ShovingAnimation Duration: 0.56
	ovdrassetid://22848200 Asset Name : OBBYAnimations ShoveReactionAnimation Duration: 0.63

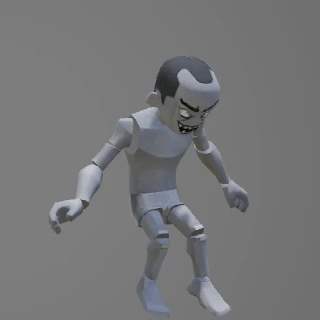

	ovdrassetid://22848400 Asset Name : OBBYAnimations DodgingBackAnimation Duration: 1.00

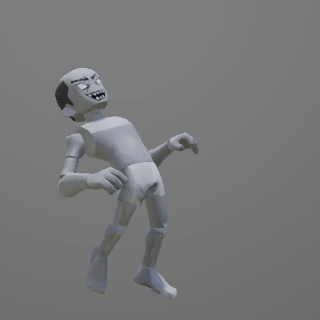

	ovdrassetid://22847200 Asset Name : OBBYAnimations HitOnTheBackAnimation Duration: 1.16

Life

Animation	Animation Id
	ovdrassetid://18827100 Asset Name : BasicLifeAnimations BasicSitAnimation Duration: 1.33
	ovdrassetid://18831100 Asset Name : BasicLifeAnimations BasicSit_LoopAnimation Duration: 4.00
	ovdrassetid://18826500 Asset Name : BasicLifeAnimations BasicAttackIdleAnimation Duration: 1.06

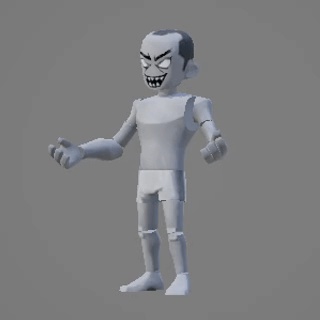

	ovdrassetid://18832100 Asset Name : BasicLifeAnimations BasicConversationAnimation Duration: 2.26
	ovdrassetid://23673200 Asset Name : BasicLifeAnimations BasicSolvingAnimation Duration: 3.60
	ovdrassetid://18835100 Asset Name : BasicLifeAnimations BasicLyingAnimation Duration: 0.10

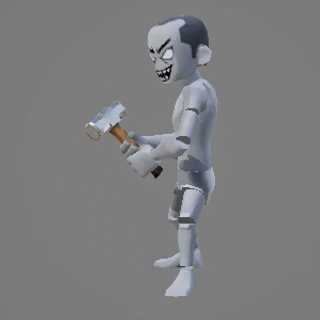

	ovdrassetid://18836100 Asset Name : BasicLifeAnimations BasicDiggingAnimation Duration: 0.43

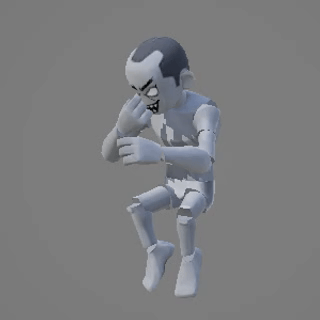

	ovdrassetid://18838100 Asset Name : BasicLifeAnimations BasicEattingAnimation Duration: 1.53
	ovdrassetid://18839100 Asset Name : BasicLifeAnimations BasicRollingAnimation
	ovdrassetid://18850100 Asset Name : WinLoseTieAnimations WinAnimation01 Duration: 1.33
	ovdrassetid://18848200 Asset Name : WinLoseTieAnimations WinAnimation02 Duration: 1.30

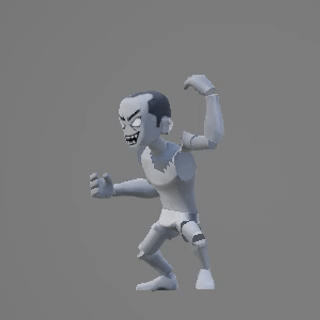

	ovdrassetid://18848300 Asset Name : WinLoseTieAnimations WinAnimation03 Duration: 1.30

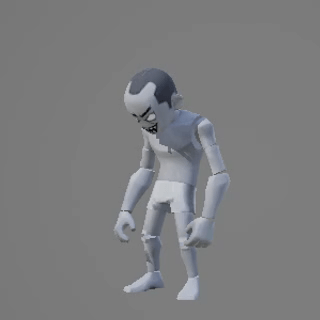

	ovdrassetid://18851100 Asset Name : WinLoseTieAnimations LoseAnimation01 Duration: 1.90

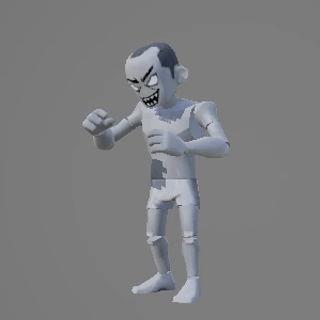

	ovdrassetid://18846200 Asset Name : WinLoseTieAnimations LoseAnimation02 Duration: 1.33
	ovdrassetid://18852100 Asset Name : WinLoseTieAnimations LoseAnimation03 Duration: 2.93
	ovdrassetid://18853100 Asset Name : WinLoseTieAnimations TieAnimation01 Duration: 1.33

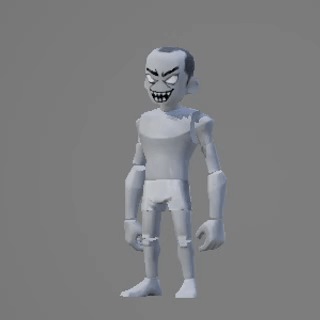

	ovdrassetid://18855100 Asset Name : WinLoseTieAnimations TieAnimation02 Duration: 2.40
	ovdrassetid://23675300 Asset Name : WarmUpAnimations WarmUpAnimation01 Duration: 3.66
	ovdrassetid://23676200 Asset Name : WarmUpAnimations WarmUpAnimation02 Duration: 2.80

Etc

Animation	Animation Id
	ovdrassetid://18869100 Asset Name : BasicPushAnimtions BasicPushingAnimation Duration: 2.06
	ovdrassetid://18870200 Asset Name : BasicPushAnimtions BasicPushWalkAnimation Duration: 0.93

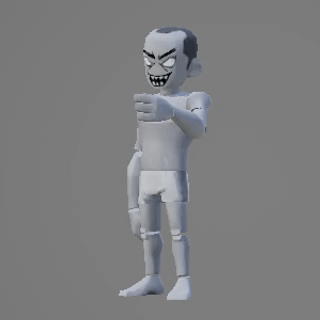

	ovdrassetid://18872100 Asset Name : BasicCarryAnimations BasicCarryAnimation Duration: 1.80
	ovdrassetid://18873200 Asset Name : BasicCarryAnimations BasicCarryRunAnimation Duration: 0.66

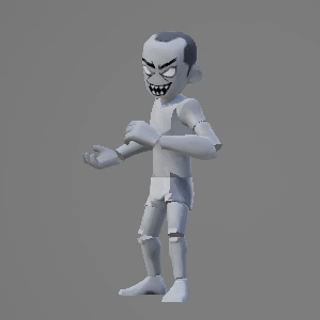

	ovdrassetid://18883100 Asset Name : BasicSkillAnimations BasicSkill_Directed_IdleAnimation Duration: 1.36
	ovdrassetid://18885100 Asset Name : BasicSkillAnimations BasicSkill_Directed_ThrowAnimation Duration: 0.66

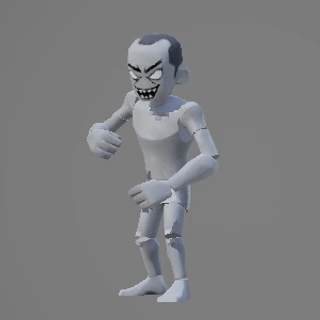

	ovdrassetid://18884200 Asset Name : BasicSkillAnimations BasicSkill_InstantAnimation Duration: 0.73
	ovdrassetid://18875100 Asset Name : PullLeverAnimation Duration: 0.60
	ovdrassetid://18889100 Asset Name : SpecialMovementAnimations HangIdleAnimation Duration: 0.80
	ovdrassetid://18889200 Asset Name : SpecialMovementAnimations HangMoveAnimation Duration: 1.00
	ovdrassetid://20487100 Asset Name : SpecialMovementAnimations JumpSecondaryAnimation Duration: 0.56
	ovdrassetid://18891100 Asset Name : SpecialMovementAnimations SquatIdleAnimation Duration: 0.80
	ovdrassetid://18891300 Asset Name : SpecialMovementAnimations SquatMoveAnimation Duration: 0.80
	ovdrassetid://18893100 Asset Name : SpecialMovementAnimations CrawlIdleAnimation Duration: 0.80
	ovdrassetid://18894200 Asset Name : SpecialMovementAnimations CrawlMoveAnimation Duration: 0.93

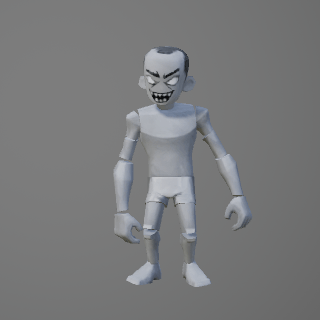

	ovdrassetid://20481200 Asset Name : SportsAnimations ThrowBallAnimation Duration: 0.96
	ovdrassetid://20481100 Asset Name : SportsAnimations SwingBatAnimation Duration: 0.93

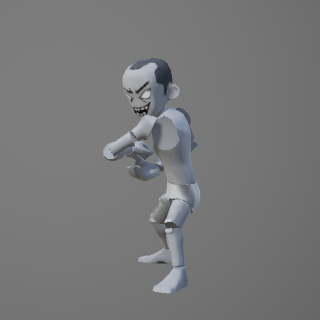

	ovdrassetid://20486100 Asset Name : BattleAnimations ThrowShurikenAnimation Duration: 0.20

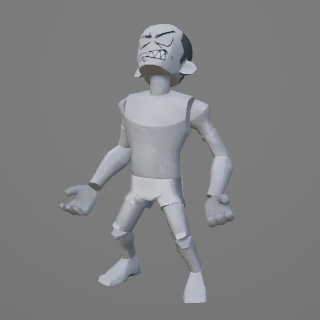

	ovdrassetid://20486300 Asset Name : BattleAnimations ChargeEnergyAnimation Duration: 1.33

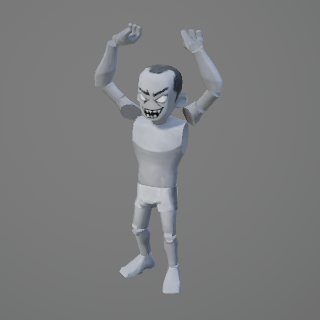

	ovdrassetid://20481400 Asset Name : BattleAnimations GrabAnimation Duration: 1.00
	ovdrassetid://20484100 Asset Name : BattleAnimations BeGrabAnimation Duration: 0.40

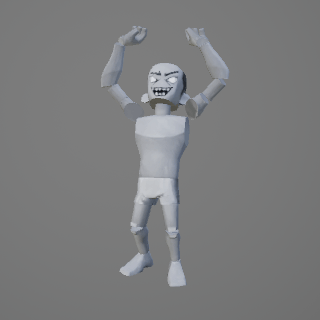

	ovdrassetid://20485100 Asset Name : BattleAnimations ThrowAnimation Duration: 0.43
	ovdrassetid://20486400 Asset Name : BattleAnimations FireballAnimation Duration: 0.76

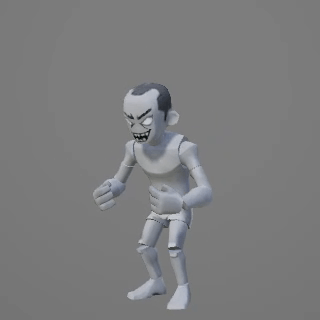

	ovdrassetid://20486600 Asset Name : BattleAnimations ResurrectionAnimation Duration: 1.93
	ovdrassetid://20487200 Asset Name : BattleAnimations HeroLandingAnimation Duration: 1.66

Creating Animations

The ODA-based Bone (Skeleton) structure allows the use of animations created in external programs.

When creating animations in external programs like Blender, ensure the skeletal mesh matches the ODA Bone structure.

You can export the created animations in FBX format to use in OVERDARE Studio.

930KB

SKM_PC_ODA_Nutty001.fbx

Open

4MB

SKM_PC_ODA_Nutty001.max

Open

Importing External Animations

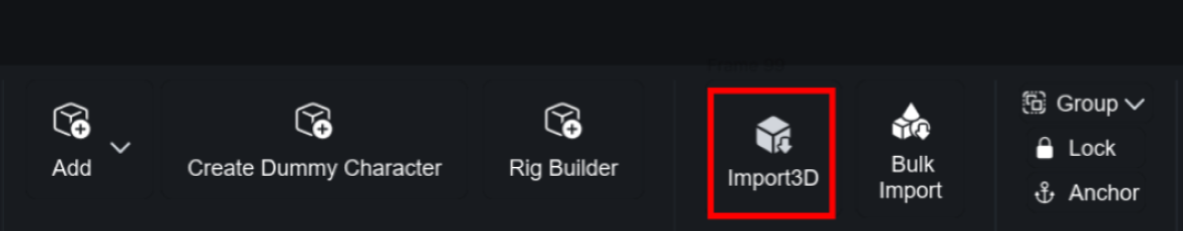

Click the Import3D button to import the animation FBX file.

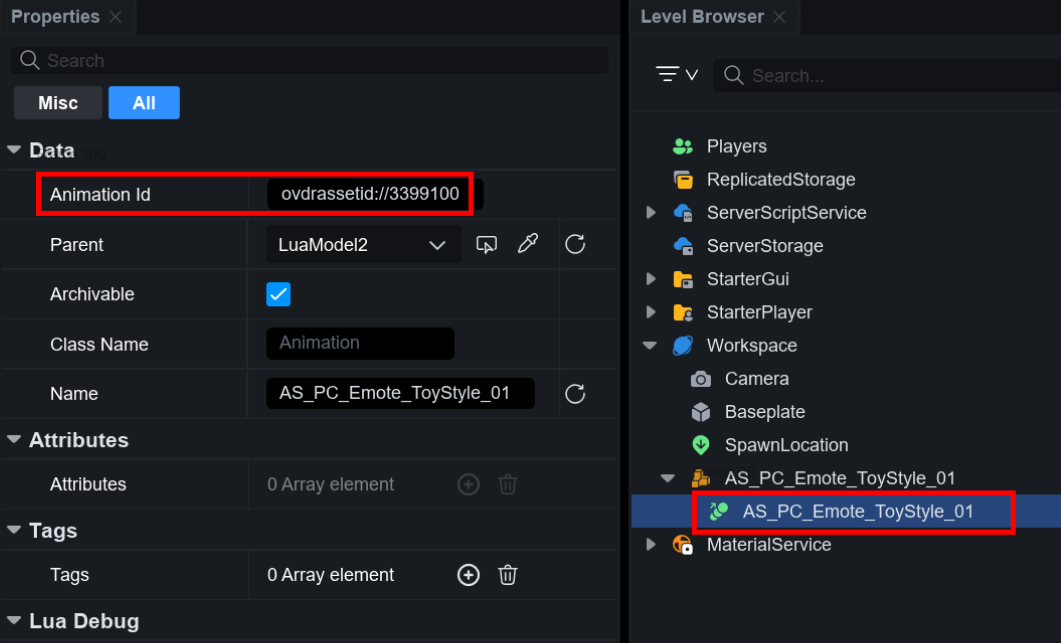

When an FBX file is imported, OVERDARE Studio sends the animation to the Creator Hub, assigns an Asset Id, and adds it to the Workspace as an Animation instance.

Playing Animations

To play animations, use the Humanoid's Animator to create an animation track for the avatar and play the track.

local animation = Instance.new("Animation")
animation.AnimationId = "ovdrassetid://Animation_ID"

local animator = character.Humanoid:WaitForChild("Animator")
local animationTrack = animator:LoadAnimation(animation)

-- If the UpperBodyAnimation is set to true, the animation will apply only to the torso.
--AnimationTrack.UpperBodyAnimation = true

animationTrack:Play()

Reference Materials

Animation Editor
