캐릭터 애니메이션

애니메이션 에셋

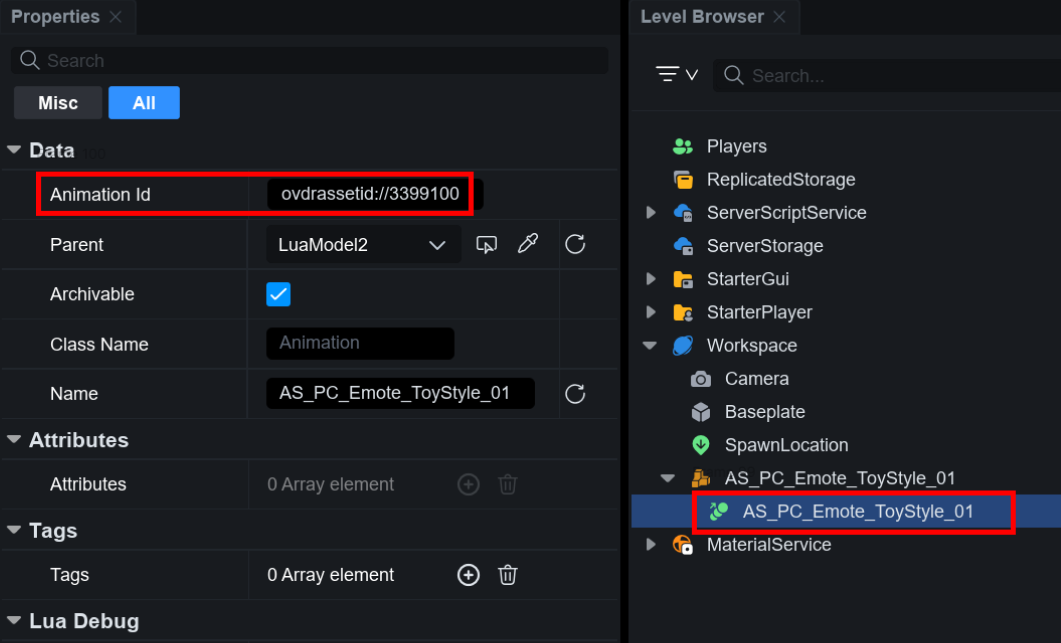

애니메이션 ID가 숫자 형식인 경우, 해당 에셋을 Asset Drawer에서 이름으로 검색한 뒤 Level Browser에 배치해야 스크립트에서 사용할 수 있습니다. (Level Browser에 배치되어 있지 않으면 Studio에서는 정상적으로 로드되더라도 모바일에서는 로드되지 않습니다.)

기본

Basic

Animation	Animation Id

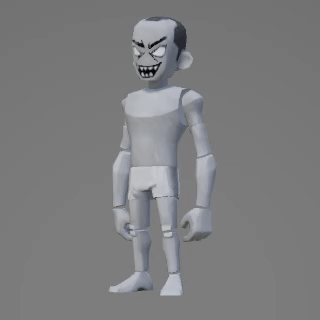

	BasicIdleAnimation

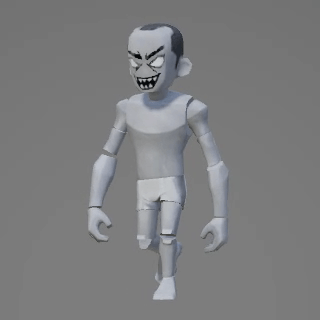

	BasicWalkAnimation
	BasicRunAnimation

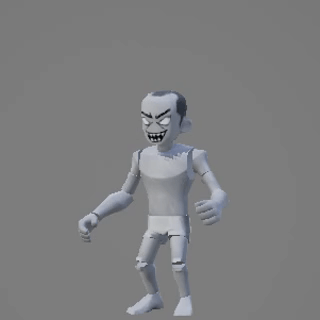

	BasicJumpAnimation
	BasicJumpLoopAnimation
	BasicLandingAnimation

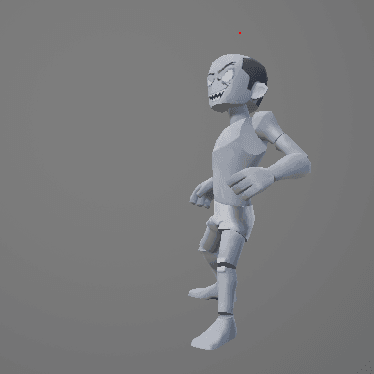

	BasicAttackAnimation

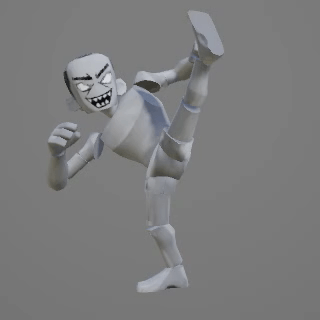

	BasicKickAnimation

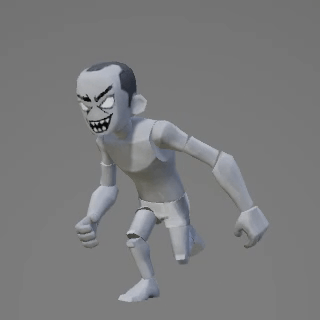

	BasicDashAnimation
	BasicRunForwardAnimation
	BasicRunLeftAnimation
	BasicRunForwardLeftAnimation
	BasicRunForwardRightAnimation
	BasicRunRightAnimation
	BasicRunBackLeftAnimation
	BasicRunBackRightAnimation
	BasicRunBackAnimation

State

Animation	Animation Id
	BasicHitAnimation
	BasicDefenceAnimation

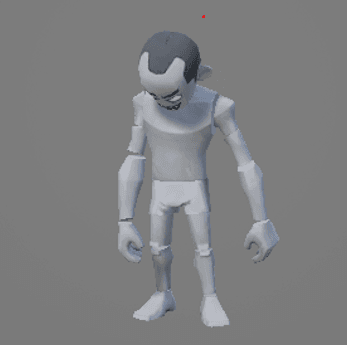

	BasicStunAnimation
	BasicDeathAnimation
	BasicDeath_FrontAnimation

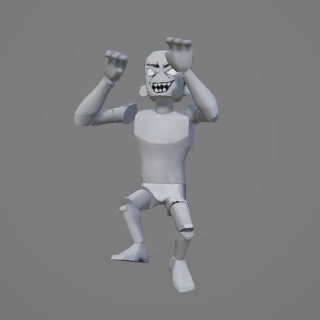

	BasicClimbAnimation

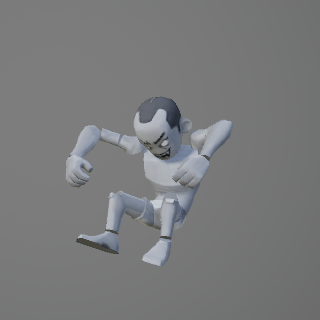

	BasicFallDieAnimation

Swim

Animation	Animation Id

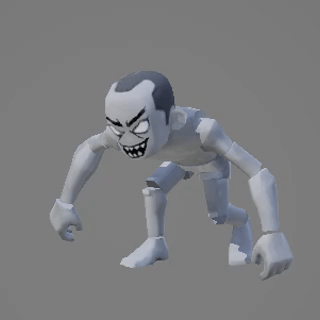

	BasicSwimRallyStartAnimation
	BasicSwimIdleAnimation

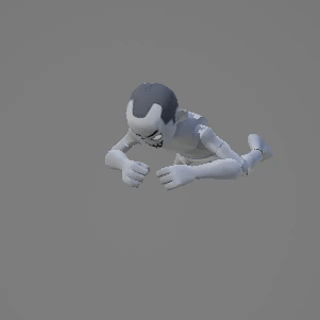

	BasicSwimBreaststrokeAnimation

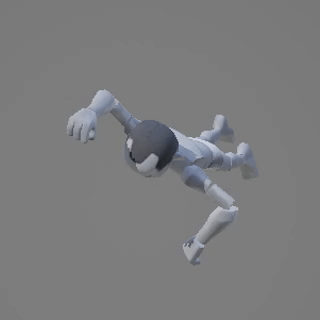

	BasicSwimCroulAnimation

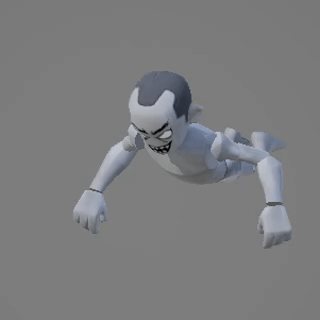

	BasicSwimDashAnimation
	BasicUnderwaterIdleAnimation
	BasicSwimDeathAnimation

TPA

Melee

Animation	Animation Id

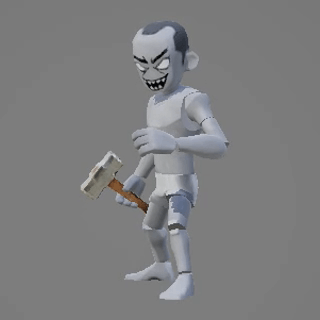

	BasicMeleeIdleAnimation

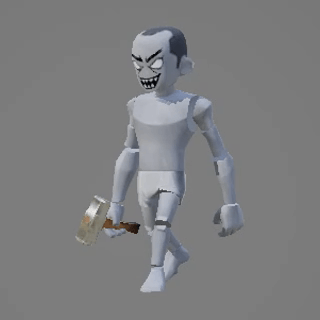

	BasicMeleeWalkAnimation

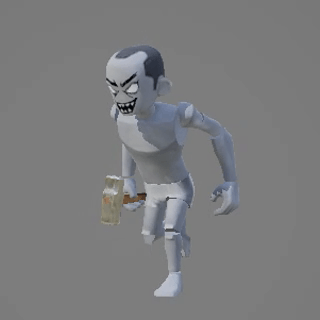

	BasicMeleeRunAnimation
	BasicMeleeJumpAnimation
	BasicMeleeJumpLoopAnimation

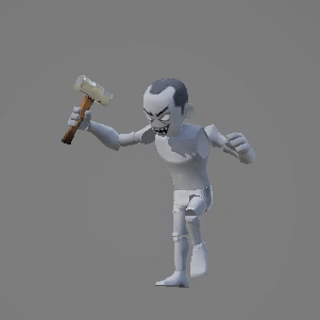

	BasicMeleeLandingAnimation
	BasicMeleeAttackAnimation

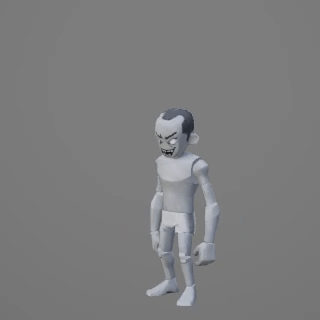

Punch

Animation	Animation Id
	ovdrassetid://12139100 Asset Name : PunchAnimations PunchIdleAnimation
	ovdrassetid://12139300 Asset Name : PunchAnimations PunchAttackAnimation01
	ovdrassetid://12140200 Asset Name : PunchAnimations PunchAttackAnimation02

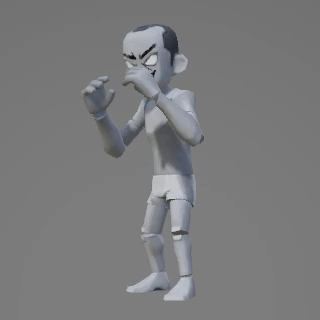

	ovdrassetid://12139200 Asset Name : PunchAnimations PunchAttackAnimation03

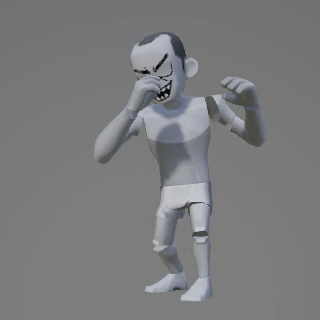

	ovdrassetid://12140300 Asset Name : PunchAnimations PunchAttackAnimation04
	ovdrassetid://12140100 Asset Name : PunchAnimations PunchDefenceAnimation
	ovdrassetid://12140400 Asset Name : PunchAnimations PunchDamageAnimation01

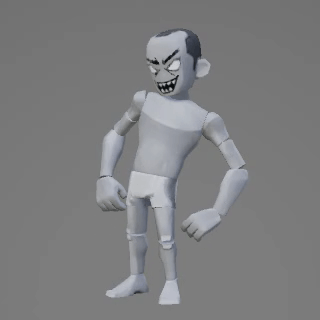

	ovdrassetid://12140500 Asset Name : PunchAnimations PunchDamageAnimation02

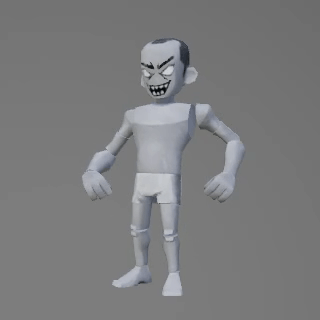

	ovdrassetid://12139500 Asset Name : PunchAnimations PunchDamageAnimation03
	ovdrassetid://12139400 Asset Name : PunchAnimations PunchKnockbackAnimation01

Sword

Animation	Animation Id
	ovdrassetid://12148100 Asset Name : SwordAnimations SwordIdleAnimation
	ovdrassetid://12148300 Asset Name : SwordAnimations SwordAttackAnimation01

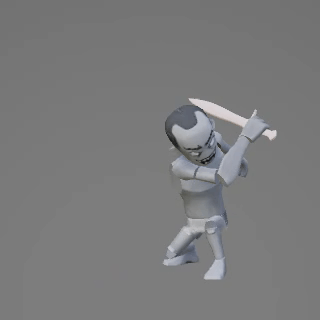

	ovdrassetid://12147400 Asset Name : SwordAnimations SwordAttackAnimation02

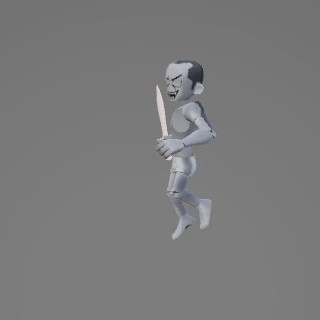

	ovdrassetid://12148200 Asset Name : SwordAnimations SwordAttackAnimation03
	ovdrassetid://12147100 Asset Name : SwordAnimations SwordJumpAttackAnimation

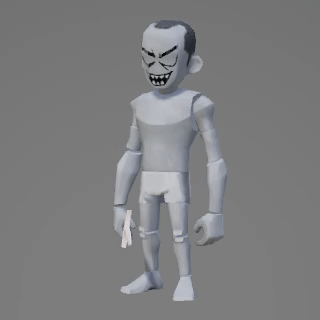

	ovdrassetid://12147200 Asset Name : SwordAnimations SwordEquipAnimation

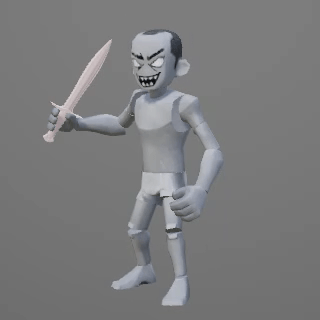

	ovdrassetid://12147300 SwordAnimations SwordUnequipAnimation

TwoHandedSword

Animation	Animation Id
	ovdrassetid://12150300 Asset Name : TwoHandedSwordAnimations TwoHandedSwordIdleAnimation

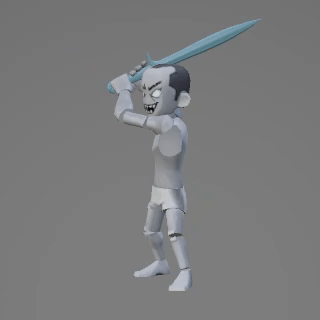

	ovdrassetid://12151400 Asset Name : TwoHandedSwordAnimations TwoHandedSwordAttackAnimation01
	ovdrassetid://12151100 Asset Name : TwoHandedSwordAnimations TwoHandedSwordAttackAnimation02
	ovdrassetid://12151300 Asset Name : TwoHandedSwordAnimations TwoHandedSwordAttackAnimation03

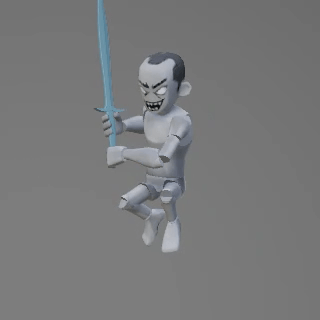

	ovdrassetid://12150200 Asset Name : TwoHandedSwordAnimations TwoHandedSwordJumpAttackAnimation

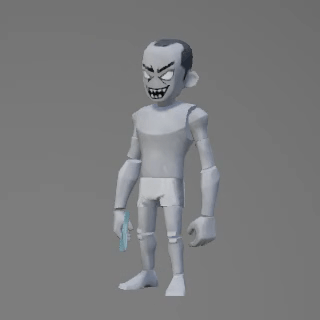

	ovdrassetid://12151200 Asset Name : TwoHandedSwordAnimations TwoHandedSwordEquipAnimation

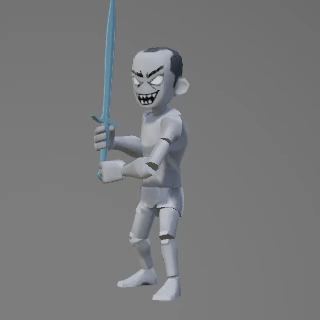

	ovdrassetid://12150100 Asset Name : TwoHandedSwordAnimations TwoHandedSwordUnequipAnimation

Bow

Animation	Animation Id
	ovdrassetid://12153200 Asset Name : BowAnimations BowIdleAnimation

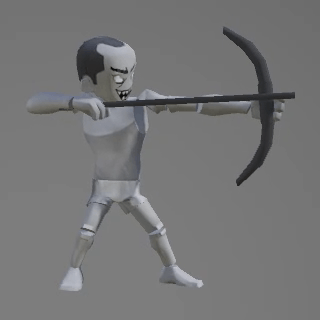

	ovdrassetid://12153300 Asset Name : BowAnimations BowChargeAnimation
	ovdrassetid://12154300 Asset Name : BowAnimations BowAttackAnimation
	ovdrassetid://12154200 Asset Name : BowAnimations BowJumpAttackAnimation
	ovdrassetid://12154100 Asset Name : BowAnimations BowEquipAnimation
	ovdrassetid://12153100 Asset Name : BowAnimations BowUnequipAnimation

Spear

Animation	Animation Id

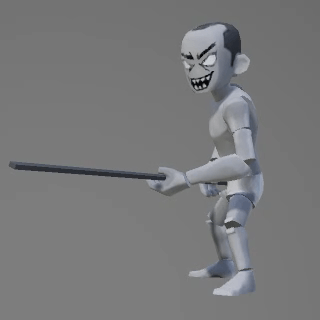

	ovdrassetid://12158300 Asset Name : SpearAnimations SpearIdleAnimation

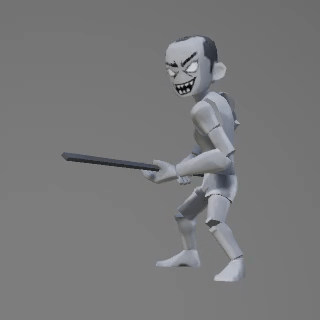

	ovdrassetid://12158200 Asset Name : SpearAnimations SpearAttackAnimation01

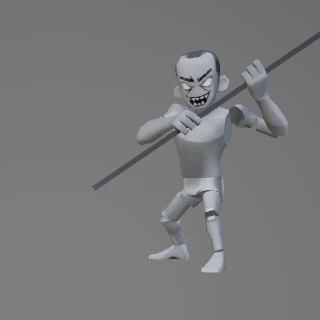

	ovdrassetid://12157300 Asset Name : SpearAnimations SpearAttackAnimation02

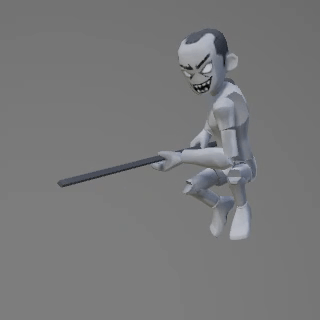

	ovdrassetid://12158100 Asset Name : SpearAnimations SpearJumpAttackAnimation
	ovdrassetid://12157200 Asset Name : SpearAnimations SpearEquipAnimation

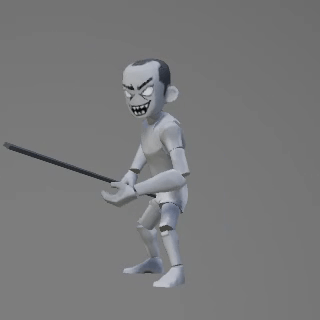

	ovdrassetid://12157100 Asset Name : SpearAnimations SpearUnequipAnimation

TPS

Handgun

Animation	Animation Id

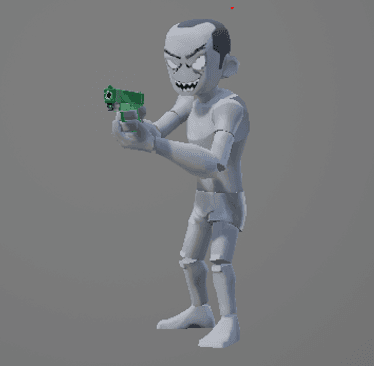

	BasicHandgunIdleAnimation
	BasicHandgunWalkAnimation

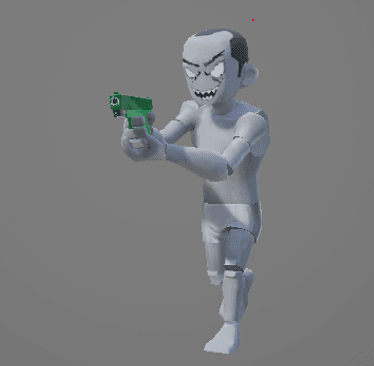

	BasicHandgunRunAnimation

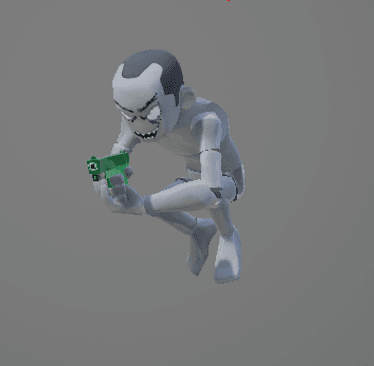

	BasicHandgunJumpAnimation

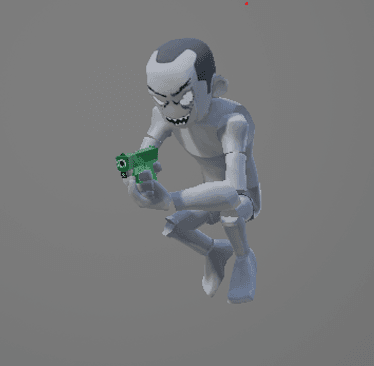

	BasicHandgunJumpLoopAnimation
	BasicHandgunLandingAnimation
	BasicHandgunAttackAnimation
	BasicHG_ReloadAnimation
	BasicHG_Boost_F_LoopAnimaton

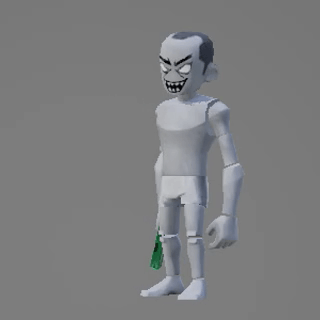

	ovdrassetid://12217100 Asset Name : FirearmsEquipAnimations PistolEquipAnimation
	ovdrassetid://12218200 Asset Name : FirearmsEquipAnimations PistolUnequipAnimation

Rifle

Animation	Animation Id
	BasicRifleIdleAnimation
	BasicRifleWalkAnimation
	BasicRifleRunAnimation

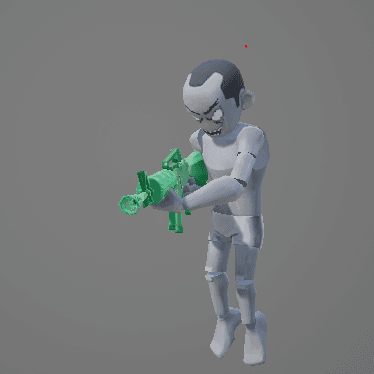

	BasicRifleJumpAnimation

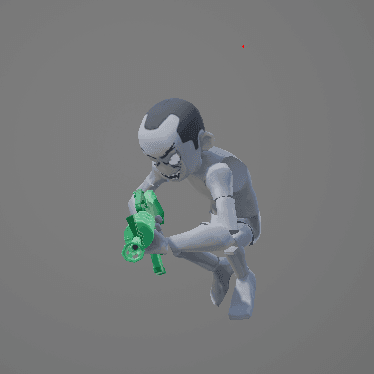

	BasicRifleJumpLoopAnimation

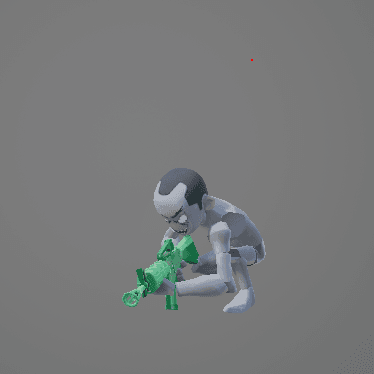

	BasicRifleLandingAnimation
	BasicRifleAttackAnimation

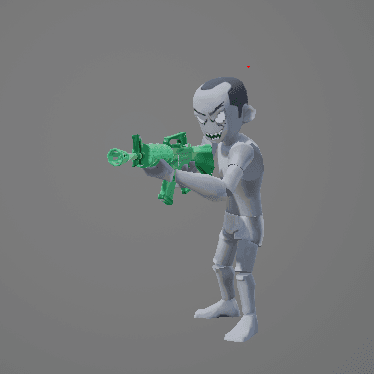

	BasicRifleReloadAnimation

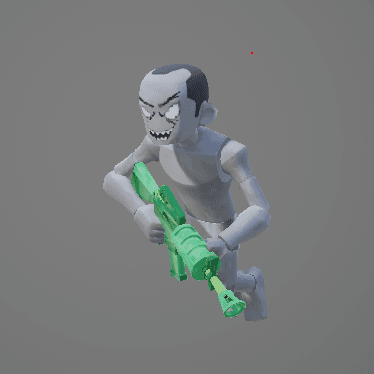

	BasicRifleBoost_F_LoopAnimation

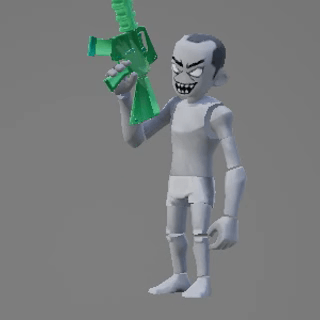

	ovdrassetid://12217200 Asset Name : FirearmsEquipAnimations RifleEquipAnimation
	ovdrassetid://12217300 Asset Name : FirearmsEquipAnimations RifleUnequipAnimation

Shotgun

Animation	Animation Id
	ovdrassetid://12186300 Asset Name : ShotgunAnimations ShotgunIdleAnimation
	ovdrassetid://12189200 Asset Name : ShotgunAnimations ShotgunWalkAnimation
	ovdrassetid://12186200 Asset Name : ShotgunAnimations ShotgunRunAnimation

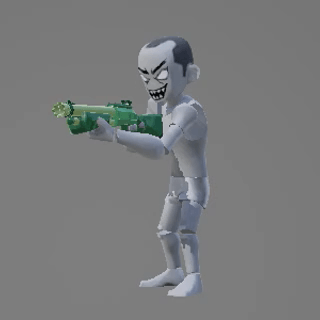

	ovdrassetid://12189400 Asset Name : ShotgunAnimations ShotgunJumpStartAnimation
	ovdrassetid://12186600 Asset Name : ShotgunAnimations ShotgunJumpLoopAnimation

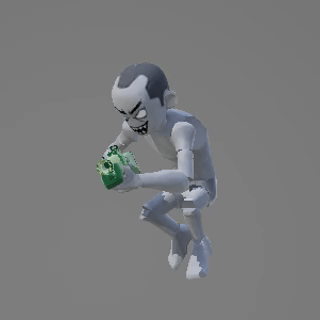

	ovdrassetid://12186700 Asset Name : ShotgunAnimations ShotgunJumpEndAnimation

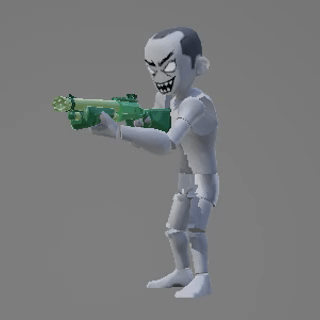

	ovdrassetid://12597100 Asset Name : ShotgunAnimations ShotgunFireAnimation

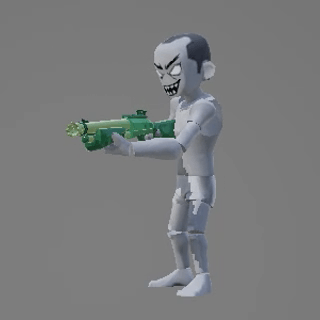

	ovdrassetid://12189100 Asset Name : ShotgunAnimations ShotgunReloadAnimation
	ovdrassetid://12189300 Asset Name : ShotgunAnimations ShotgunLoadAnimation

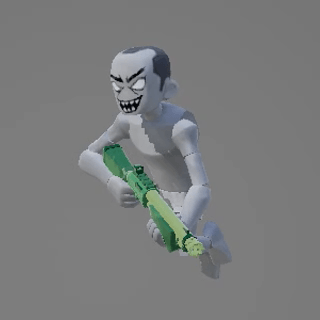

	ovdrassetid://12186500 Asset Name : ShotgunAnimations ShotgunBoostAnimation

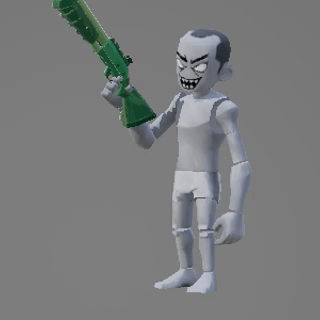

	ovdrassetid://12217100 Asset Name : ShotgunAnimations ShotgunEquipAnimation

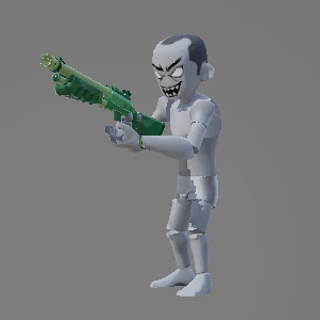

	ovdrassetid://12217200 Asset Name : ShotgunAnimations ShotgunUnequipAnimation

Bazooka

Animation	Animation Id
	ovdrassetid://12162200 Asset Name : BazookaAnimations BazookaIdleAnimation
	ovdrassetid://12162100 Asset Name : BazookaAnimations BazookaAttackAnimation

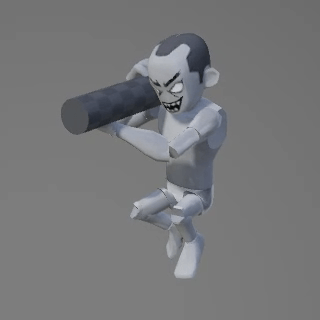

	ovdrassetid://12160100 Asset Name : BazookaAnimations BazookaJumpAttackAnimation)
	ovdrassetid://12161200 Asset Name : BazookaAnimations BazookaEquipAnimation
	ovdrassetid://12161100 Asset Name : BazookaAnimations BazookaUnequipAnimation

Life

Animation	Animation Id

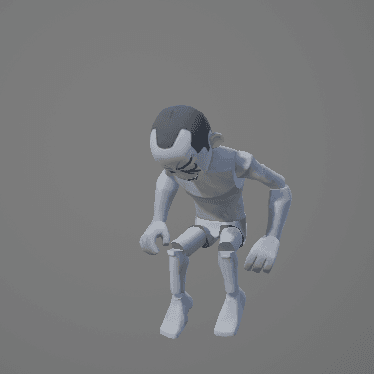

	BasicSitAnimation
	BasicSit_LoopAnimation

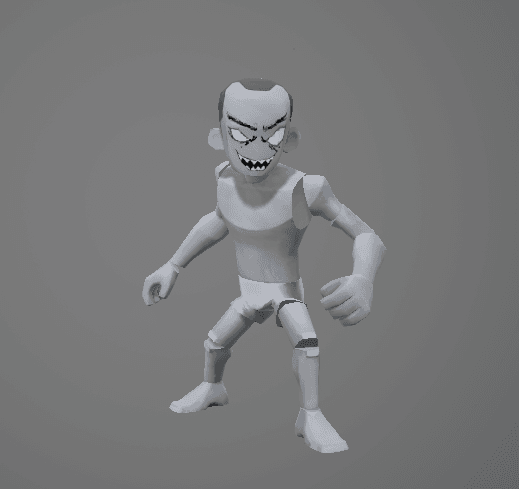

	BasicAttackIdleAnimation
	BasicConversationAnimation
	BasicSolvingAnimation

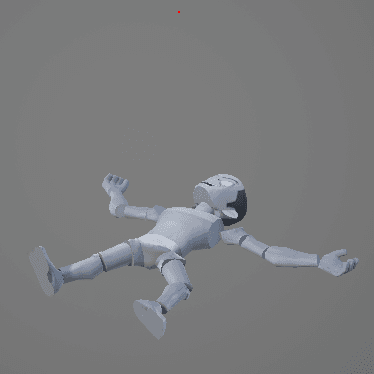

	BasicLyingAnimation
	BasicDiggingAnimation
	BasicEattingAnimation
	BasicRollingAnimation
	ovdrassetid://12225100 Asset Name : WinLoseTieAnimations WinAnimation01
	ovdrassetid://1222620 Asset Name : WinLoseTieAnimations WinAnimation02
	ovdrassetid://12225200 Asset Name : WinLoseTieAnimations WinAnimation03

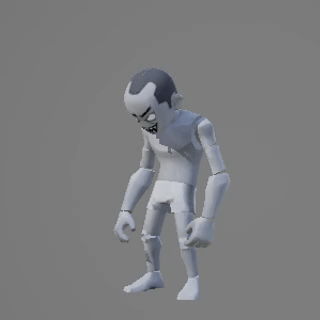

	ovdrassetid://12225400 Asset Name : WinLoseTieAnimations LoseAnimation01

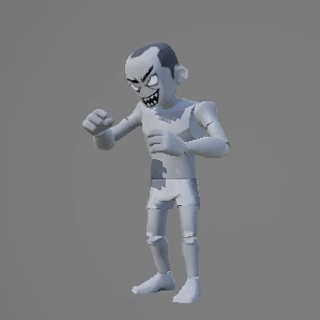

	ovdrassetid://12225300 Asset Name : WinLoseTieAnimations LoseAnimation02

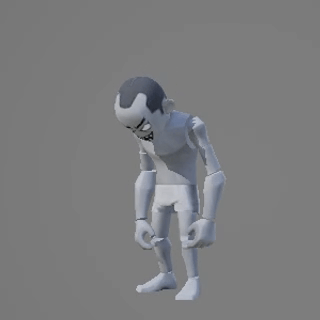

	ovdrassetid://12226400 Asset Name : WinLoseTieAnimations LoseAnimation03)
	ovdrassetid://12226100 Asset Name : WinLoseTieAnimations TieAnimation01

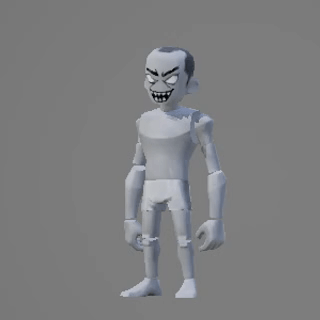

	ovdrassetid://12226300 Asset Name : WinLoseTieAnimations TieAnimation02
	ovdrassetid://12228500 Asset Name : WarmUpAnimations WarmUpAnimation01
	ovdrassetid://12228400 Asset Name : WarmUpAnimations WarmUpAnimation02

Etc

Animation	Animation Id

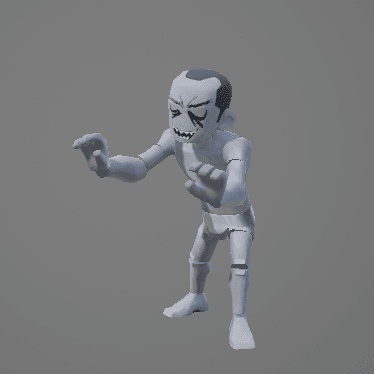

	BasicPushingAnimation

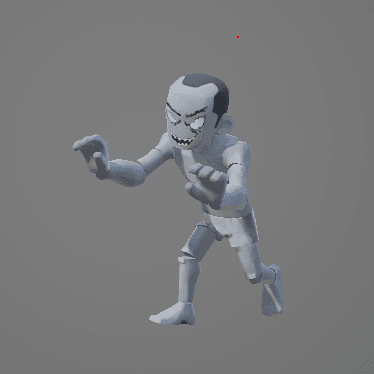

	BasicPushWalkAnimation
	BasicCarryAnimation
	BasicCarryRunAnimation
	BasicSkill_Directed_IdleAnimation

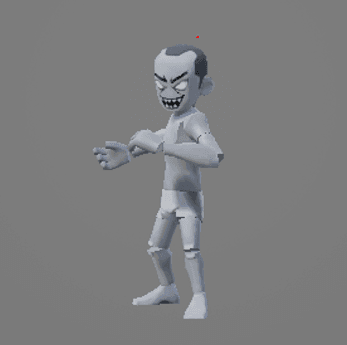

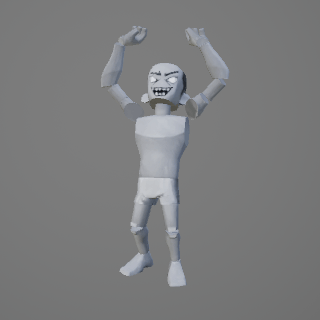

	BasicSkill_Directed_ThrowAnimation
	BasicSkill_InstantAnimation
	ovdrassetid://12222100 Asset Name : PullLeverAnimation
	ovdrassetid://12213100 Asset Name : SpecialMovementAnimations HangIdleAnimation

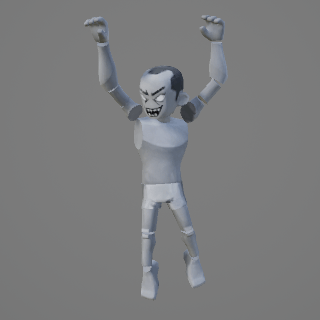

	ovdrassetid://12213200 Asset Name : SpecialMovementAnimations HangMoveAnimation

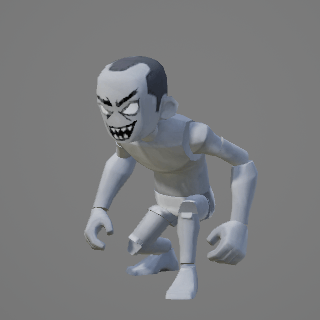

	ovdrassetid://12214300 Asset Name : SpecialMovementAnimations SquatIdleAnimation

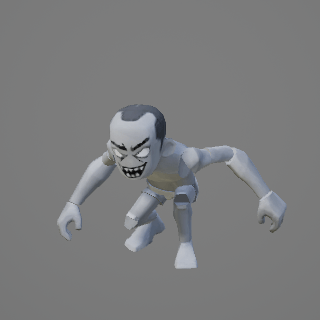

	ovdrassetid://12213300 Asset Name : SpecialMovementAnimations SquatMoveAnimation
	ovdrassetid://12214200 Asset Name : SpecialMovementAnimations CrawlIdleAnimation

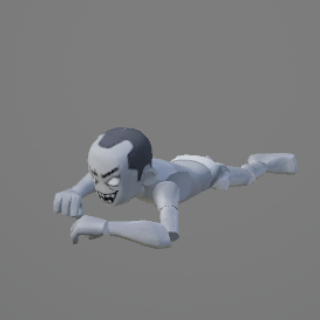

	ovdrassetid://12214100 Asset Name : SpecialMovementAnimations CrawlMoveAnimation

애니메이션 제작

ODA 기반의 Bone(Skeleton) 구조를 통해 외부 프로그램에서 제작한 애니메이션을 사용할 수 있습니다.

Blender 등 외부 프로그램에서 애니메이션을 제작할 때는 반드시 ODA Bone 구조와 일치하는 Skeletal Mesh를 사용해야 합니다.

제작한 애니메이션은 FBX 형식으로 내보내서 OVERDARE Studio에서 사용할 수 있습니다.

798KB

SKM_PC_ODA_Nutty001.fbx

4MB

SKM_PC_ODA_Nutty001.max

외부 애니메이션 가져오기

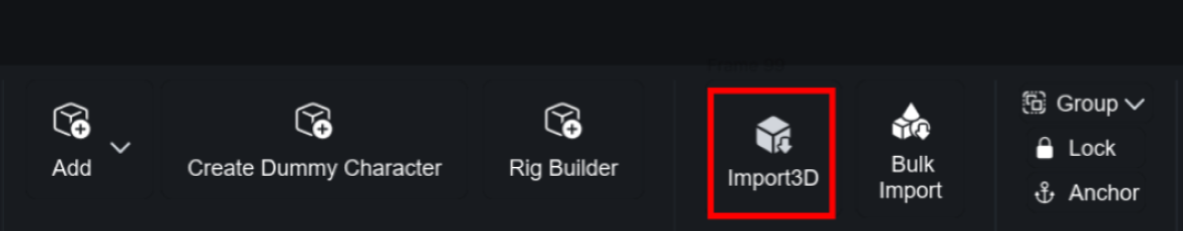

Import3D 버튼을 눌러 제작한 애니메이션 FBX 파일을 가져옵니다.

FBX 파일을 Import하면 스튜디오가 해당 애니메이션을 Creator Hub로 전송한 뒤 Asset ID를 발급하여, Workspace에 Animation 인스턴스로 추가합니다.

애니메이션 플레이

애니메이션을 재생하려면 Humanoid의 Animator를 이용하여 아바타의 애니메이션 트랙을 생성하고, 해당 트랙을 재생하면 됩니다.

local animation = Instance.new("Animation")
animation.AnimationId = "ovdrassetid://애니메이션_ID"

local animator = character.Humanoid:WaitForChild("Animator")
local animationTrack = animator:LoadAnimation(animation)

animationTrack:Play()
